Unitree Go2 Edu Plus- XT16 & D1 ARM
Unitree Go2 Edu Plus- XT16 & D1 ARM
  • Load image into Gallery viewer, Unitree Go2 Edu Plus- XT16 & D1 ARM
  • Load image into Gallery viewer, Unitree Go2 Edu Plus- XT16 & D1 ARM

Unitree Go2 Edu Plus- XT16 & D1 ARM

Regular price
HKD 183,000.00
Sale price
HKD 183,000.00
Regular price
Sold out
Unit price
per

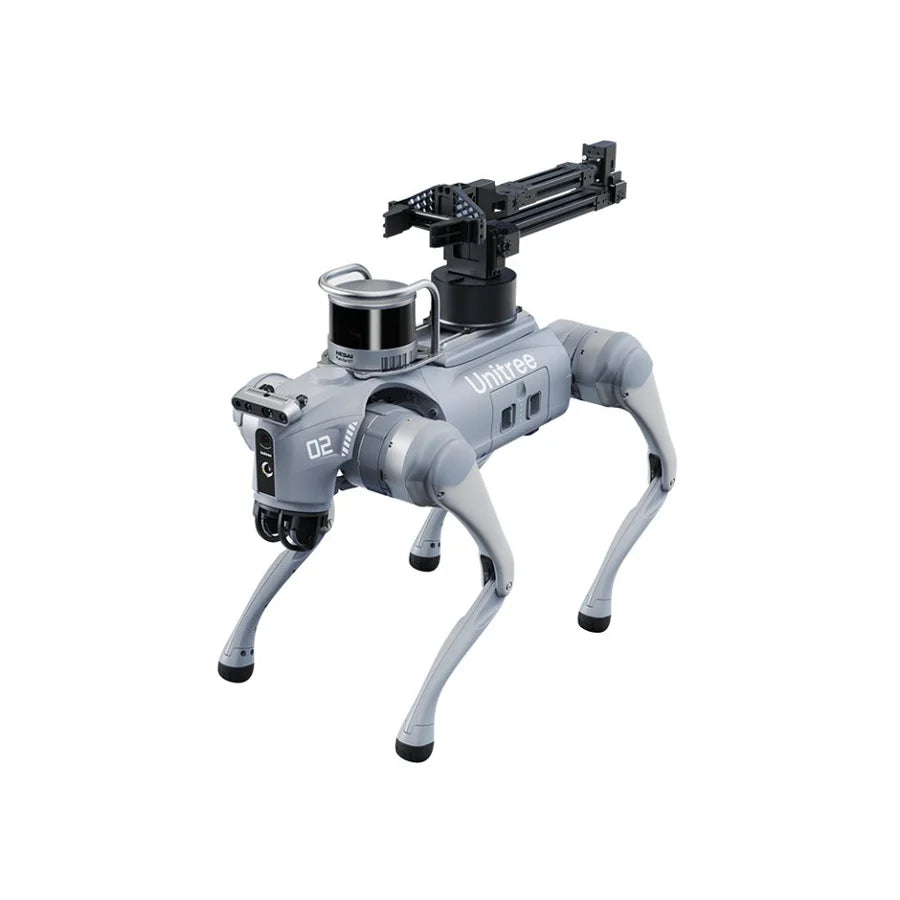

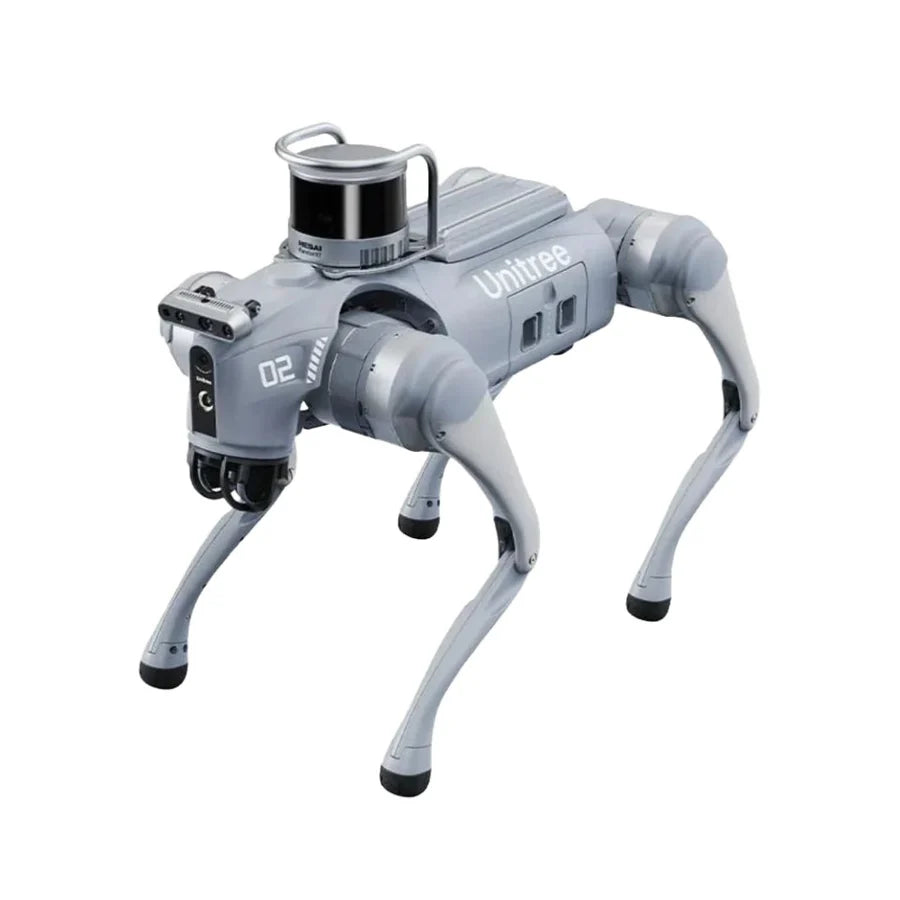

The Unitree Go2 series consists of Unitree's upgraded and improved quadruped robot dogs with 12 aluminium knee joint motors. The Unitree Go2 Edu comes with a super wide-angle 3D LiDAR, foot-end force sensors, secondary development ability, high-computing power module, and a 15000mAh ultra long-life battery. It is also equipped with voice function, ISS 2.0 intelligent side-follow system, joint heat pipe coolers which can effectively decrease temperatures.

The D1 Arm is compatible with the Go2 Edu and Go2 Ent series.



Specifications:

Go2 Edu Plus



Dimensions:

L: 70cm W: 31cm H: 40cm

Material:

Aluminium Alloy + High Strength Engineering Plastic

Voltage:

28~33.6V

Max. Power Output:

3,000W

Payload:

8 ~12kg

Max. Speed:

3.7~5m/s

Max. Climb Drop Height:

16cm

Max. Climb Angle:

40°

Max. Torque:

45N.m

Range Of Motion:

Body -48~48°, Thighs -200~90°, Shank -156~48°

Smart Battery:

15,000 mAh

Battery Life:

2~4 hours

Fast Power Charger:

33.6V, 9A

D1 Arm


Dimensions:

L: 30cm W: 15m H: 20cm

Degrees Of Freedom:

6

Load:

500g (ideal weight)

Power Requirement:

24V 2.5A (MAX 5A)

Power:

60W



Unitree Go2 Servo Robotic Arm D1

  • Unitree Go2 Servo Robotic Arm D1
  • Payload: 500 g
  • Offers six degrees of freedom and one jaw-clamp
  • Control interface: RJ45
  • Power: 60 W
  • Operates at 24V with a maximum current of 2.5A

Specification:

  • Degree of freedom: 6 degrees of freedom + 1 jaw clamp
  • Payload: 500 g
  • Maximum arm span
  • Approx. 495 - 550 mm (excluding jaw length, minor variations may occur with subsequent structural changes)
  • Approx. 620 - 670 mm (including the length of the jaws, subsequent structural changes may have a small range of changes)
  • Power Requirement: 24 V 2.5 A (MAX 5A)
  • Interface: DC 5.5 - 2.1
  • Power: 60 W
  • Control interface: control communication interface RJ45
  • Joint parameters
    • J1 ±135°
    • J2 ±90°
    • J3 ±90°
    • J4 ±135°
    • J5 ±90°
    • J6 ±135°



Hesai XT16 3D LiDAR

The 3D LiDAR Hesai XT16 is a high-precision, long-range sensing solution that significantly enhances the Go2’s environmental mapping and obstacle detection capabilities..

  • Field of View (FoV): 30°, with vertical angles from -15° to +15°, providing comprehensive environmental coverage.
  • Resolution: Achieves 0.18° horizontally at 10 Hz and 1° vertically, for precise detail capture.
  • Dimensions: Compact design with a top diameter of 100.0 mm, bottom diameter of 103.0 mm, and height of 76.0 mm.
  • Range: Impressive detection from 0.05 m up to 120 m, accommodating both near and far objects.
  • Precision and Accuracy: Offers range precision of 0.5 cm at 1σ and accuracy within ±1 cm, ensuring reliable data..
