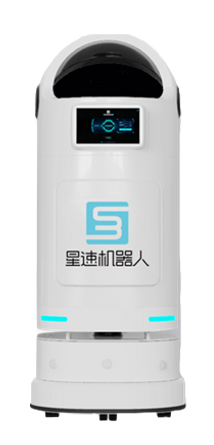

S3D1 Star Speed non-touch Delivery Robot

S3D1 Star Speed non-touch Delivery Robot

HKD 16,660.00

S3D1 is a contactless delivery robot that achieves end-to-end automation, saving labor and improving work efficiency. It can deliver a range of items and greatly enhances safety during epidemic prevention and control.

Hardware Specification

Material: ABS, metal iron

Dimensions: 393 x 398 x 1078mm (L x W x H)
Net weight: 43kg (including battery)
Screen size: 7 inches
Screen resolution: 1280 x 800
CPU: Dual-core Cortex-A72 plus quad-core Cortex-A53, 64-bit six-core processor
Memory: 2+16G
Smart system: Customized Android version
Network support: Full network 4G
Speaker: High-fidelity speaker with ultra-low bass
Sensors:
Integrated ultrasonic sensor
Fall prevention sensor
Ultrasonic obstacle avoidance sensor
Collision sensor
Cargo capacity: Double cargo container, up to 35L
Autonomous navigation system: Laser radar (25m)
Environment map drawing: SLAM scanning
Moving speed: 0-0.7m/s
Climbing angle: 5°
Vertical crossing: 20mm
Horizontal crossing: 40mm
Tires: Anti-slip rubber tires, suitable for use on granite, carpet, etc.
Omni-directional wheel
Operating temperature: 0-40℃
Operating humidity: 30%-70%
Operating environment: Indoor use only, no excessive dust, no corrosive odors
Battery capacity: 24V16Ah
Charging voltage: 24V/6A
Charging method: Automatic contact charging/manual emergency charging
Automatic charging: Infrared induction automatic charging
Charging pile: 100-240v~50/60Hz, 5A Max
Charging pile size: 355 x 150 x 320mm (L x W x H)
Charging time: ≤3 hours
Operating time: ≤4.5 hours (continuous operation on full charge), automatically returns to recharge in case of no delivery task/low battery status
Status indicator light: Smart control LED light strip
Safety emergency stop button: Rear of the chassis
Remote control: Remote control
Collision strip: 180° at the front of the chassis
